SUNNYSKY X2206S 1500KV 31g ブラシレスモーター

SUNNYSKY X2206S 2100KV Outrunner Brushless Motor

取り付け可能プロペラ　
シャフト径　5ｍｍ
厚み8ｍｍ以下

写真以外の付属品はありません。

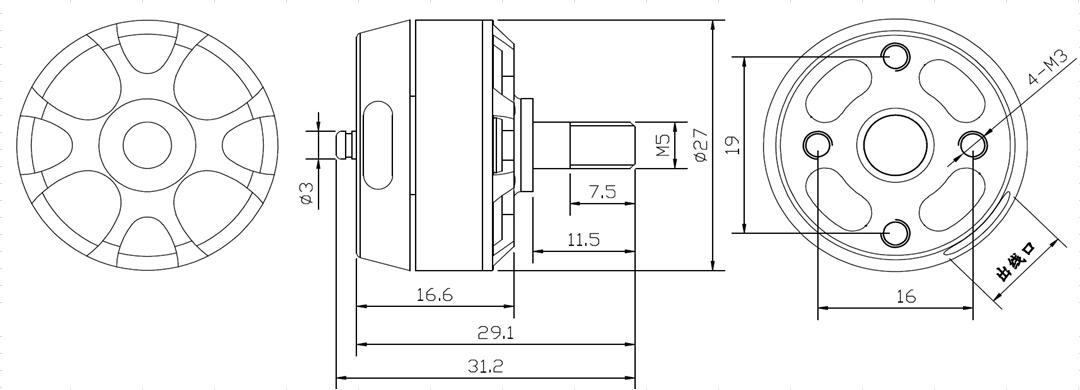

Stator Diameter 22mm
Stator Thickness 6mm
No.of Stator Arms 12
No.of Stator Poles 14
Motor Kv 2100
NO-Load Current(A/10V) 0.8A
Motor Resistance 67mΩ
Max Continuous Current 25A/15S
Max Continuous Power 370W
Weight 31g
Outside Diameter 27mm
Shaft Diameter 3mm
Body Length 16.6mm
Overall Shaft Length 31.2mm
Max Lipo Cell 2-4S
ESC 30A
Recommend Prop(inch) 5030, 5040, 5045

Prop	Volts	Amps	Thrust(g)	Watts (W)	Efficiency (g/W)	Full throttle Temperature
(inch)	(V)	(A)			g/W
HQ5*3	11.1	1.8	100	19.98	5.01
		2.8	150	31.08	4.83
		3.8	200	42.18	4.74
		4.8	250	53.28	4.69
		6.3	310	69.93	4.43	20℃
HQ5*3	14.8	1.4	100	20.72	4.83
		2.2	150	32.56	4.61
		3	200	44.4	4.50
		3.9	250	57.72	4.33
		4.8	300	71.04	4.22
		5.8	350	85.84	4.08
		6.9	400	102.12	3.92
		7.8	450	115.44	3.90
		9	500	133.2	3.75
		9.6	530	142.08	3.73	27℃
HQ5*4	11.1	1.8	100	19.98	5.01
		2.9	150	32.19	4.66
		4	200	44.4	4.50
		5.2	250	57.72	4.33
		6.3	300	69.93	4.29
		7.6	350	84.36	4.15
		8.9	400	98.79	4.05
		10.1	440	112.11	3.92	20℃
HQ5*4	14.8	1.4	100	20.72	4.83
		2.3	150	34.04	4.41
		3.1	200	45.88	4.36
		4.3	250	63.64	3.93
		5.2	300	76.96	3.90
		6.2	350	91.76	3.81
		7.4	400	109.52	3.65
		8.6	450	127.28	3.54
		9.8	500	145.04	3.45
		10.9	550	161.32	3.41
		12.2	600	180.56	3.32
		13.6	650	201.28	3.23
		15.1	710	223.48	3.18	29℃
HQ5*4.5	11.1	1.8	100	19.98	5.01
		2.8	150	31.08	4.83
		4.1	200	45.51	4.39
		5.3	250	58.83	4.25
		6.5	300	72.15	4.16
		7.7	350	85.47	4.10
		9.1	400	101.01	3.96
		10.4	450	115.44	3.90	20℃
HQ5*4.5	14.8	1.4	100	20.72	4.83
		2.2	150	32.56	4.61
		3	200	44.4	4.50
		4	250	59.2	4.22
		5	300	74	4.05
		6.1	350	90.28	3.88
		7.3	400	108.04	3.70
		8.4	450	124.32	3.62
		9.6	500	142.08	3.52
		11	550	162.8	3.38
		12.2	600	180.56	3.32
		13.6	650	201.28	3.23
		15.8	720	233.84	3.08	30℃
HQ6*4.5	11.1	1.6	100	17.76	5.63
		2.4	150	26.64	5.63
		3.3	200	36.63	5.46
		4.4	250	48.84	5.12
		5.3	300	58.83	5.10
		6.4	350	71.04	4.93
		7.6	400	84.36	4.74
		8.8	450	97.68	4.61
		10.1	500	112.11	4.46
		11.4	550	126.54	4.35
		13	600	144.3	4.16
		14.2	650	157.62	4.12
		15.8	700	175.38	3.99
		17.6	750	195.36	3.84	34℃
